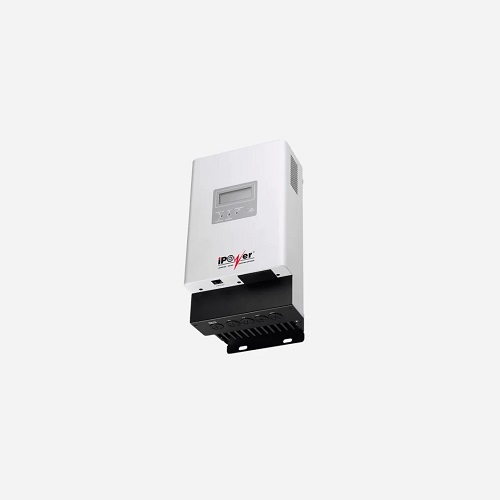

iPower 3KW MPPT Solar Charge Controller

Name: iPower 3KW MPPT Solar Charge Controller
Brand: Zinox
SKU: 23566
Availability: InStock

Add to wishlist

₦207,000.00

(0 reviews)

23 people are viewing this right now

Estimated Delivery:

17 - 24 Apr, 2026

Guaranteed safe & secure checkout

Product details

Maximize your solar system’s efficiency with this advanced MPPT charge controller, designed for 12V, 24V and 48V battery setups. With a high power capacity of 3000W and a wide PV input range, it optimizes energy conversion for sealed, AGM and gel batteries. Reliable, powerful and built to handle up to 60A of current, it ensures your system runs smoothly and efficiently.

Rated Power: 3000W

Nominal Battery Voltage: 12VDC/24VDC/48VDC

Battery Type: Sealed lead acid/AGM/Gel

Solar Charger Type: MPPT

Maximum PV Array Power: 800W/1600W/3000W

Maximum PV Array Open Circuit Voltage: 145VDC

MPPT Range @ Operating Voltage: 60-115VDC

Maximum PV in put Current: 60A

Quick Comparison

iPower 3KW MPPT Solar Charge Controller remove iPower 200Ah/12V Slim Inverter Battery remove iPowerplus 200Ah/12V Inverter Battery remove Prag 4kva 48v Pure Sinewave Inverter-Wall Mount remove Prag 4kva 24v Pure Sine Wave Inverter - Wall Mount remove Mercury 8kva Off Grid Hybrid Solar Inverter 48v, MPPT remove

Name iPower 3KW MPPT Solar Charge Controller remove iPower 200Ah/12V Slim Inverter Battery remove iPowerplus 200Ah/12V Inverter Battery remove Prag 4kva 48v Pure Sinewave Inverter-Wall Mount remove Prag 4kva 24v Pure Sine Wave Inverter - Wall Mount remove Mercury 8kva Off Grid Hybrid Solar Inverter 48v, MPPT remove


SKU

Rating

Price

₦207,000.00

₦400,000.00

₦370,000.00

₦968,000.00

₦965,000.00

₦1,780,000.00

Stock

20 in stock

Availability 20 in stock 20 in stock

Add to cart

Description

Rated Power: 3000W

Nominal Battery Voltage: 12VDC/24VDC/48VDC

Battery Type: Sealed lead acid/AGM/Gel

Solar Charger Type: MPPT

Maximum PV Array Power: 800W/1600W/3000W

Maximum PV Array Open Circuit Voltage: 145VDC

MPPT Range @ Operating Voltage: 60-115VDC

Maximum PV in put Current: 60A

Front Terminal Hybrid GEL 6-GFMF-200J
Strong Containers/Covers.
Excellent charge acceptance.
Withstands Deep Discharge and Overcharge.
Performs under extreme conditions.
Intercell Welding reduces chances of accidental short-circuiting of cells.

200Ah/12V Inverter Battery

PRAG 4KVA-48V H-Series (Pure Sine Wave) Inverter / Charger is a combination of an inverter, battery charger and AC auto-transfer switch that forms one complete system with a peak conversion efficiency rating of 88%. Packed with powerful features, it is simply one of the most reliable and robust inverter/chargers in the market today. PRAG 4KVA-48V H-Series features power factor correction, sophisticated multi-stage charging and pure sine wave output with superior surge capability to meet demanding power needs of inductive loads without endangering the equipment. This series is equipped with a powerful charger of up to110Amps (depending on model). The overload capacity is 300% of continuous output for up to 20 seconds to reliably support sudden increase in loads without damaging the system within the time frame.

PRAG H-Series Pure Sine Wave Inverter is a combination of an inverter, battery charger and AC auto-transfer switch into one complete system with a peak conversion efficiency of 88%. It is packed with unique features and it is one of the most advanced inverter/chargers in the market today. It features power factor correction, sophisticated multi-stage charging and pure sine wave output with unprecedentedly high surge capability to meet demanding power needs of inductive loads without endangering the equipment. PRAG H-Series Inverter is equipped with a powerful charger of up to110Amps (depending on model). The overload capacity is 300% of continuous output for up to 20 seconds to reliably support tools and equipment longer.

Pure sine wave ;AC output delivers clean, safe power to run sensitive equipment. Voltage regulation in battery mode keeps output steady.
Built-in Wi-Fi for remote monitoring via mobile app (Android/iOS). USB, RS232, and RS485 ports allow communication with external devices like batteries.
>;Status LEDs clearly indicate system status. RGB lights show the power source (solar, grid, battery) and battery charge/discharge condition.
A robust design with a replaceable fan and anti-dust kit allows reliable operation in harsh environments.
Supports parallel operation to increase capacity up to 66,000W (up to 6 units).
>;Automatic transfer between solar, utility/generator, and battery power ensures uninterrupted supply.

Content

Rated Power: 3000W

Nominal Battery Voltage: 12VDC/24VDC/48VDC

Battery Type: Sealed lead acid/AGM/Gel

Solar Charger Type: MPPT

Maximum PV Array Power: 800W/1600W/3000W

Maximum PV Array Open Circuit Voltage: 145VDC

MPPT Range @ Operating Voltage: 60-115VDC

Maximum PV in put Current: 60A

iPower 200AH battery is a deep cycled sealed maintenance-free battery designed for inverters, telecommunication and other applications involving battery back-up need that involve continuous charging and discharging. This battery is designed to store DC power and which is converted to AC in orther to power your home appliances, when there is no public power supply available. This iPowerPlus Inverter battery is 200AH with 12V. The battery is nicely structed, giving a slim body with lasting power.Perfect Match for your Inverter Systems.Performs under extreme conditions.Withstands Deep Discharge and Overcharge.Excellent protection against leakage and corrosion.Strong Containers/Covers.Intercell Welding reduces chances of accidental short-circuiting of cells.Special Lead Alloy Composition.Excellent charge acceptance.Large electrolyte volume.Microporous PVC Separators.

Power is stored in an inverter's battery bank in the state a battery is designed to store DC power and that is what the inverter converts and provides in a form your home appliances can use (AC power), when there is no public power supply available. This iPowerPlus Inverter battery is 200AH 12V. iPowerPlus inverters, certified batteries and smart solar options are already enjoying rave reviews from thousands of patrons who have bought and installed them in their homes and offices, with many emphasizing that the solutions have helped cut their monthly energy costs while at the same time proving to be a more efficient alternative to the erratic supply from the national grid.

Powerful Pure Sine Wave (PSW) Inverter/Charger
13 Vdc inverter Battery Recover Point (BRP) – Dedicated for Renewable Energy Systems
High efficiency design and Power Saving Mode to conserve energy
8 Pre-set battery type selectors with de-sulphation for totally flat inverter batteries
4 Step Intelligent Battery Charging system, and Power Factor Correction (PFC)
8 Ms typical transfer time between utility and battery bank. This guarantees power continuity and consistency
15 Seconds delay before transfer when AC Resumes, and protection for load when used with generator
Battery DOD (Depth of Discharge) setting from 50%
Easy and straightforward installation
Designed to operate under harsh environment
DC Start and Automatic Self Diagnostic (ASD) function
Compatible with Linear and Non-Linear loads
Low DC Voltage home and office appliances support
Up to 120Amp charging current selectable from 0%-100%
Battery priority mode for preferred UPS configuration

Inverter Output
Model	PT-INV-4KVA 48V-Color LED, Wall-H
Continuous Output Power	3000W
Surge Rating(20s)	9000W
Capable of Starting Electric Motor	3HP
Output Waveform	Pure Sine wave/Same as input(Bypass mode)
Nominal Efficiency	>88%(Peak)
Line Mode Efficiency	>95%
Power Factor	0.9-1.0
Nominal Output Voltage rms	220-230-240Vac
Output Voltage Regulation	±10% RMS
Output Frequency	50Hz ± 0.3Hz
Short Circuit Protection	Yes, Current Limit Function (Fault after 1sec)
Typical transfer Time	10ms(Max)
THD	< 10%
DC Input
Nominal Input Voltage	12.0Vdc
Nominal Input Voltage	( 2 for 24Vdc, 4 for 48Vdc)
Minimum Start Voltage	10.0Vdc/10.5Vdc ( 2 for 24Vdc, 4 for 48Vdc)
Low Battery Alarm	10.5Vdc/11.0Vdc ( 2 for 24Vdc, 4 for 48Vdc)
Low Battery Trip	10.0Vdc/10.5Vdc ( 2 for 24Vdc, 4 for 48Vdc)
High Voltage Alarm & Fault	16.0Vdc ( 2 for 24Vdc, 4 for 48Vdc)
High DC Input Recovery	15.5Vdc
Low Battery voltage recover	15.5Vdc ( 2 for 24Vdc, 4 for 48Vdc)
Idle Consumption-Search Mode	< 25 W when Power Saver On
Charge
Input Voltage Range	Wide: 90~135VAC / 164~243VAC Narraw: 100~135VAC / 194~243VAC
Input Frequency Range	Narrow: 47-55±0.3Hz for 50Hz, 57-65±0.3Hz for 60Hz \| Wide:43±0.3Hz plus for 50Hz/60Hz
Output Voltage	Depends on battery type
Charger Breaker Rating	20A
Max Charge Rate	50 + 5A/30 + 5A (* 50A for 24V and 30A for 48V)
Over Charge Protection Shutdown	15.7V for 12Vdc ( 2 for 24Vdc, 4 for 48Vdc)
Charger curve(4 stage constant current) 4 step digital controlled progressive charge	Battery types ( 2 for 24Vdc, 4 for 48Vdc)
Battery type	Fast Vdc
Gel U.S.A	13.7
A.G.M 1	13.4
A.G.M 2	13.7
Sealed Lead Acid	13.6
Gel Euro	13.8
Open Lead Acid	13.3
Calcium	13.6
De-sulphation	15.5 for 4hrs
Remote Control	Yes. Optional
Bypass & Protection
Input Voltage Waveform	Sine wave (Grid or Generator)
Nominal Voltage	120Vac
Low Voltage Trip	184V/140V±4%
Low Voltage re engage	194V/150V±4%
High Voltage Trip	253V/270V±4%
High Voltage re engage	243V/260V±4%
Max Input AC Voltage	280VAC
Nominal Input Frequency	50Hz or 60Hz (Auto detect)
Low Freq Trip	Narrow: 47±0.3Hz for 50Hz, 57±0.3Hz for 60Hz Wide:40±0.3Hz for 50Hz/60Hz
Low Freq re engage	Narrow: 48±0.3Hz for 50Hz, 58±0.3Hz for 60Hz Wide:42±0.3Hz for 50Hz/60Hz
High Freq Trip	Narrow: 55±0.3Hz for 50Hz, 65±0.3Hz for 60Hz Wide: 70±0.3Hz for 50Hz/60Hz
High Freq re engage	Narrow: 54±0.3Hz for 50Hz, 64±0.3Hz for 60Hz Wide: 68±0.3Hz for 50Hz/60Hz
Output Short circuit protection	Circuit breaker
Bypass breaker rating	30A
Transfer switch rating	30amp for UL
Max bypass current	30amp
Mechanical Specification
Mounting	Wall mount
Inverter Dimensions(LWH)	3883415200mm
Inverter Weight	27KG
Shipping Dimensions(LWH)	550x320x310mm
Shipping Weight	29KG
Display	Status LEDs / Status LEDs+LCD
Standard Warranty	1 Year

4KVA-24V Pure Sine Wave Inverter - Wall Mount-H + AC/DC Cables PRAG H-Series Pure Sine Wave Inverter is a combination of an inverter, battery charger and AC auto-transfer switch into one complete system with a peak conversion efficiency of 88%. It is packed with unique features and it is one of the most advanced inverter/chargers in the market today. It features power factor correction, sophisticated multi-stage charging and pure sine wave output with unprecedentedly high surge capability to meet demanding power needs of inductive loads without endangering the equipment. PRAG H-Series Inverter is equipped with a powerful charger of up to110Amps (depending on model). The overload capacity is 300% of continuous output for up to 20 seconds to reliably support tools and equipment longer. Features

Easy to Install & Easy to Operate & Easy to Solve
Designed to Operate under Harsh Environment
DC Start & Automatic Self-Diagnostic Function
Powerful Charge Rate Up to 120Amp (depending on model), Selectable From 0%-100%
High Efficiency Design & “Power Saving Mode” to Conserve Energy
8 pre Set Battery Type Selector plus De-sulphation for Totally Flat Batteries
4-step Intelligent Battery Charging, PFC (Power Factor Correction) for Charger
8 ms Typical Transfer Time Between Utility & Battery, Guarantees Power Continuity
15s Delay Before Transfer when AC Resumes, Protection for Load when Used with Generator
Battery DOD(Depth of Discharge) setting from 50% to 100%.
SNMP remote monitoring (available as an option)

Pure sine wave ;AC output delivers clean, safe power to run sensitive equipment. Voltage regulation in battery mode keeps output steady.
Built-in Wi-Fi for remote monitoring via mobile app (Android/iOS). USB, RS232, and RS485 ports allow communication with external devices like batteries.
>;Status LEDs clearly indicate system status. RGB lights show the power source (solar, grid, battery) and battery charge/discharge condition.
A robust design with a replaceable fan and anti-dust kit allows reliable operation in harsh environments.
Supports parallel operation to increase capacity up to 66,000W (up to 6 units).
>;Automatic transfer between solar, utility/generator, and battery power ensures uninterrupted supply.
