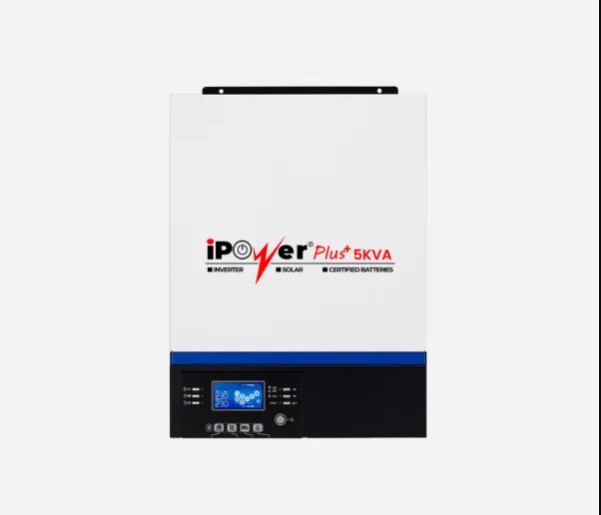

iPowerPlus+ 5kVA Inverter

Name: iPowerPlus+ 5kVA Inverter
Brand: Ipower
SKU: 23583
Availability: InStock

Add to wishlist

₦560,000.00

(0 reviews)

30 people are viewing this right now

Estimated Delivery:

10 - 17 May, 2026

Guaranteed safe & secure checkout

Product details

The iPowerPlus+ inverter is a high-performance solution designed to boost your solar energy efficiency, featuring a 48VDC battery voltage and MPPT solar charger for optimal performance. With a maximum PV input of 5000W and 100A charge current, it ensures seamless energy conversion and storage. Its battery-independent design offers flexibility and reliability, while battery equalization extends the system’s lifecycle for long-term performance. Additionally, a reserved communication port (RS485, CAN-BUS, or RS232) allows for easy integration with your Battery Management System (BMS). Compatible with other brands of lithium batteries, it provides excellent versatility. Perfect for residential solar setups, offering excellent value and reliable power management.

Rated Power: 5000VA/5000W

Battery Voltage: 48VDC

Solar Charger Type: MPPT

Maximum PV Array Power: 5000W

Maximum PV Array Open Circuit Voltage: 500VDC

MPPT Range @ Operating Voltage: 120-450VDC

Maximum PV input Current: 100A

Maximum Charge Current :100A

Reserved communication port (RS485, CAN-BUS or RS232) for BMS

Quick Comparison

iPowerPlus+ 5kVA Inverter remove iPower Infiniti 5KVA/ 48VDC remove Prag 10KVA /48V Advance Pure Sinewave Inverter-Wall Mount VT remove Prag 7.2kw Adv Modular Solar Inverter-VT remove iPowerplus 5KVA/48V Inverter remove Mercury 8kva Off Grid Hybrid Solar Inverter 48v, MPPT remove

Name iPowerPlus+ 5kVA Inverter remove iPower Infiniti 5KVA/ 48VDC remove Prag 10KVA /48V Advance Pure Sinewave Inverter-Wall Mount VT remove Prag 7.2kw Adv Modular Solar Inverter-VT remove iPowerplus 5KVA/48V Inverter remove Mercury 8kva Off Grid Hybrid Solar Inverter 48v, MPPT remove


SKU

Rating

Price

₦560,000.00

₦1,170,000.00

₦2,700,000.00

₦2,245,000.00

₦730,000.00

₦1,780,000.00

Stock

20 in stock

Availability 20 in stock 20 in stock

Add to cart

Description

Rated Power: 5000VA/5000W

Battery Voltage: 48VDC

Solar Charger Type: MPPT

Maximum PV Array Power: 5000W

Maximum PV Array Open Circuit Voltage: 500VDC

MPPT Range @ Operating Voltage: 120-450VDC

Maximum PV input Current: 100A

Maximum Charge Current :100A

Reserved communication port (RS485, CAN-BUS or RS232) for BMS

5KVA.48V
PV Array: 9000W

PRAG 10KVA 48V INVERTER features power factor correction, sophisticated multi-stage charging and pure sine wave output with superior surge capability to meet demanding power needs of inductive loads without endangering the equipment. This series is equipped with a powerful charger of up to110Amps (depending on model). The overload capacity is 300% of continuous output for up to 20 seconds to reliably support sudden increase in loads without damaging the system within the time frame.

Inverter Output Model 7.2K-48 Power Rating 7200W INPUT Voltage 230 VAC Selectable Voltage Range 170 – 280 VAC (For Personal Computer); 90-280 VAC (For Home Appliances) Frequency Range 50/60 Hz (Auto Sensing) OUTPUT AC Voltage Regulation (Batt. Mode) 230 VAC ±5% Surge Power 15000 VA Efficiency (Peak) 90% – 93% Transfer Time 15 ms (For Personal Computers); 20 ms (For Home Appliances) Waveform Pure Sine Wave BATTERY Battery Voltage 48 VDC Floating Charge Voltage 54 VDC Overcharging Protection 63 VDC SOLAR CHARGER & AC CHARGER Solar Charger Type MPPT Maximum PV Array Open Circuit Voltage 500 VDC Maximum PV Array Power 8000 W (4000W *2) MPPT Range @ Operating Voltage 90 VDC ~450 VDC Maximum Solar Charge Current 80 A Maximum AC Charge Current 80 A Maximum Charge Current 80 A PHYSICAL Dimension, D x W x H (mm) 147.4 x 432.5 x 553.6 Net Weight (Kgs) 18.4 Communication Port USB/RS232/RS485/Bluetooth/Dry-contact OPERATING ENVIRONMENT Operating Humidity 5% to 95% Relative Humidity (Non – condensing) Operating Temperature -10C to 50C Storage Temperature -15C to 60 C Standard Compliance Safety

Hybrid inverter
5KVA

Pure sine wave ;AC output delivers clean, safe power to run sensitive equipment. Voltage regulation in battery mode keeps output steady.
Built-in Wi-Fi for remote monitoring via mobile app (Android/iOS). USB, RS232, and RS485 ports allow communication with external devices like batteries.
>;Status LEDs clearly indicate system status. RGB lights show the power source (solar, grid, battery) and battery charge/discharge condition.
A robust design with a replaceable fan and anti-dust kit allows reliable operation in harsh environments.
Supports parallel operation to increase capacity up to 66,000W (up to 6 units).
>;Automatic transfer between solar, utility/generator, and battery power ensures uninterrupted supply.

Content

Rated Power: 5000VA/5000W

Battery Voltage: 48VDC

Solar Charger Type: MPPT

Maximum PV Array Power: 5000W

Maximum PV Array Open Circuit Voltage: 500VDC

MPPT Range @ Operating Voltage: 120-450VDC

Maximum PV input Current: 100A

Maximum Charge Current :100A

Reserved communication port (RS485, CAN-BUS or RS232) for BMS

iPower Infiniti 5KVA/48V Inverter PV Array:9000W iPowerPlus Inverters are digital smart power solutions which range from 1KVA-20KVA. The Pure Sine Wave Hybrid Inverter comes with an in-built solar charge controller that connects automatically to solar and utility supply. This allows you to switch between AC Power and Solar Power

Rated Output Power 5000VA/4000W
Maximum PV Array Power 9000W
MPPT Voltage Range 60-115 VDC
Dimension 194 x 295 x 455
Weight 17kg
Maximum Charging Current 140

PRAG 10KVA 48V INVERTER W-EY (Pure Sine Wave) Inverter / Charger is a combination of an inverter, battery charger and AC auto-transfer switch that forms one complete system with a peak conversion efficiency rating of 88%. Packed with powerful features, it is simply one of the most reliable and robust inverter/chargers in the market today. PRAG 10KVA 48V INVERTER features power factor correction, sophisticated multi-stage charging and pure sine wave output with superior surge capability to meet demanding power needs of inductive loads without endangering the equipment. This series is equipped with a powerful charger of up to110Amps (depending on model). The overload capacity is 300% of continuous output for up to 20 seconds to reliably support sudden increase in loads without damaging the system within the time frame. PRAG 10KVA 48V INVERTER Features

Powerful Pure Sine Wave (PSW) Inverter/Charger
13 Vdc inverter Battery Recover Point (BRP) – Dedicated for Renewable Energy Systems
High efficiency design and Power Saving Mode to conserve energy
8 Pre-set battery type selectors with de-sulphation for totally flat inverter batteries
4 Step Intelligent Battery Charging system, and Power Factor Correction (PFC)
8 Ms typical transfer time between utility and battery bank. This guarantees power continuity and consistency
15 Seconds delay before transfer when AC Resumes, and protection for load when used with generator
Battery DOD (Depth of Discharge) setting from 50%
Easy and straightforward installation
Designed to operate under harsh environment
DC Start and Automatic Self Diagnostic (ASD) function
Compatible with Linear and Non-Linear loads
Low DC Voltage home and office appliances support
Up to 120Amp charging current selectable from 0%-100%
Battery priority mode for preferred UPS configuration

Inverter Output
Model	PT-INV-10KVA/9000W 48V-Color LED, Wall-H
Continuous Output Power	9000W
Surge Rating(20s)	24000W
Capable of Starting Electric Motor	8HP
Output Waveform	Pure Sine wave/Same as input(Bypass mode)
Nominal Efficiency	>88%(Peak)
Line Mode Efficiency	>95%
Power Factor	0.9-1.0
Nominal Output Voltage rms	220-230-240Vac
Output Voltage Regulation	±10% RMS
Output Frequency	50± 0.3Hz/60± 0.3Hz
Short Circuit Protection	Yes, Current Limit Function (Fault after 1sec)
Typical transfer Time	10ms(Max)
THD	< 10%
DC Input
Nominal Input Voltage	12.0Vdc
Nominal Input Voltage	( 2 for 24Vdc, 4 for 48Vdc)
Minimum Start Voltage	10.0Vdc/10.5Vdc ( 2 for 24Vdc, 4 for 48Vdc)
Low Battery Alarm	10.5Vdc/11.0Vdc ( 2 for 24Vdc, 4 for 48Vdc)
Low Battery Trip	10.0Vdc/10.5Vdc ( 2 for 24Vdc, 4 for 48Vdc)
High Voltage Alarm & Fault	16.0Vdc ( 2 for 24Vdc, 4 for 48Vdc)
High DC Input Recovery	15.5Vdc
Low Battery voltage recover	15.5Vdc ( 2 for 24Vdc, 4 for 48Vdc)
Idle Consumption-Search Mode	< 25 W when Power Saver On
Charge
Input Voltage Range	Wide: 90~135VAC / 164~243VAC Narraw: 100~135VAC / 194~243VAC
Input Frequency Range	Narrow: 47-55±0.3Hz for 50Hz, 57-65±0.3Hz for 60Hz Wide:43±0.3Hz plus for 50Hz/60Hz
Output Voltage	Depends on battery type
Charger Breaker Rating	40A
Max Charge Rate	50 + 5A/30 + 5A (* 50A for 24V and 30A for 48V)
Over Charge Protection Shutdown	15.7V for 12Vdc ( 2 for 24Vdc, 4 for 48Vdc)
Charger curve(4 stage constant current) 4 step digital controlled progressive charge	Battery types ( 2 for 24Vdc, 4 for 48Vdc)
Battery type	Float Vdc
Gel U.S.A	13.7
A.G.M 1	13.4
A.G.M 2	13.7
Sealed Lead Acid	13.6
Gel Euro	13.8
Open Lead Acid	13.3
Calcium	13.6
De-sulphation	15.5 for 4hrs
Remote Control	Yes. Optional
Bypass & Protection
Input Voltage Waveform	Sine wave (Grid or Generator)
Nominal Voltage	220Vac
Low Voltage Trip	184V/140V±4%
Low Voltage re engage	194V/150V±4%
High Voltage Trip	253V/270V±4%
High Voltage re engage	243V/260V±4%
Max Input AC Voltage	280VAC
Nominal Input Frequency	50Hz or 60Hz (Auto detect)
Low Freq Trip	Narrow: 47±0.3Hz for 50Hz, 57±0.3Hz for 60Hz Wide:40±0.3Hz for 50Hz/60Hz
Low Freq re engage	Narrow: 48±0.3Hz for 50Hz, 58±0.3Hz for 60Hz Wide:42±0.3Hz for 50Hz/60Hz
High Freq Trip	Narrow: 55±0.3Hz for 50Hz, 65±0.3Hz for 60Hz Wide: 70±0.3Hz for 50Hz/60Hz
High Freq re engage	Narrow: 54±0.3Hz for 50Hz, 64±0.3Hz for 60Hz Wide: 68±0.3Hz for 50Hz/60Hz
Output Short circuit protection	Circuit breaker
Bypass breaker rating	63A
Transfer switch rating	80amp for UL
Max bypass current	80amp
Mechanical Specification
Mounting	Wall mount
Inverter Dimensions(LWH)	588415200mm
Inverter Weight	66KG
Shipping Dimensions(LWH)	750x520x310mm
Shipping Weight	68KG
Display	Status LEDs / Status LEDs+LCD
Standard Warranty	1 Year

Modular/Parallel Operation: up to 6 units of this inverter can be combined to give a maximum of 43.2KW Advanced Inverter Built In MPPT Solar Charge Controller: String/High PV (450V DC) Battery independent design – can operate without battery connected Selectable input voltage range for home appliances and personal computers Lithium Battery Charging Compatible Selectable high power charging current Customizable status LED bar with RGB lights Built-in Wi-Fi for mobile monitoring (Android/iOS App is available) Supports USB On-the-Go function Reserved communication port for BMS (RS485, CAN-BUS or RS2320 Replaceable fan design for ease of maintenance Configurable AC/PV output usage timer and prioritization Compatible to Utility mains voltage or generator power Built-in anti-dust kit Optional DC output for DC fan, LED bulb, router and so on

The iPowerPlus 5KVA/48V runs on a pure sine wave technology. It is well shielded from short-circuits and overload complications with automated tripping off when the batteries get to the threshold. It is a hybrid system with an in-built solar charge controller that has a complementary in-built cooling system comprising of heat zinc and fans. Other features The iPowerPlus 5KVA/48V is compatible with both mains voltage and generator power. It interfaces with the utility electricity in the home to provide power through solar panels and seamlessly resolve any power interruptions that may occur. It includes other features such as:

A smart battery charger that optimizes battery performance
Selectable charging current depending on the applications
Selectable input voltage range
Configurable solar/AC input priority
Auto restart while AC recovers
A perfect alarming system

We must point out that the transition from mains to generator and vice versa is very seamless and usually occurs without you even noticing it except you are close by the inverter.

Pure sine wave ;AC output delivers clean, safe power to run sensitive equipment. Voltage regulation in battery mode keeps output steady.
Built-in Wi-Fi for remote monitoring via mobile app (Android/iOS). USB, RS232, and RS485 ports allow communication with external devices like batteries.
>;Status LEDs clearly indicate system status. RGB lights show the power source (solar, grid, battery) and battery charge/discharge condition.
A robust design with a replaceable fan and anti-dust kit allows reliable operation in harsh environments.
Supports parallel operation to increase capacity up to 66,000W (up to 6 units).
>;Automatic transfer between solar, utility/generator, and battery power ensures uninterrupted supply.
