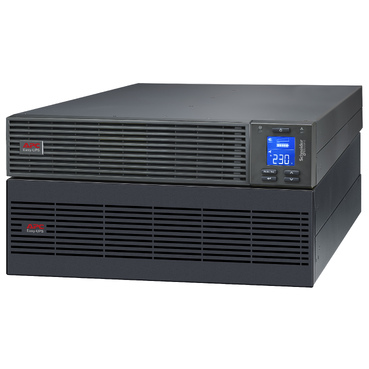

APC Easy UPS On-Line SRV RM 10000VA 230V with External Battery Pack SRV10KRILRK
₦4,295,000.00
27 people are viewing this right now
Guaranteed safe & secure checkout
Product details
Shipping and Returns
About the brand
Reviews
Questions
Product details
This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 10kVA double-conversion on-line 5U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRV comes with hard wire 3-wire(1P+N+E) input and hard wire 3-wire(1P+ N+E) outlet. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9901l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.
| Presentation | High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions. |
|---|
|
Run time for load
W Min-max: 1000-10000 W
|
2min 32s
|
|---|---|
|
Max. Capacity Used
|
100 % |
| Main input voltage | 230 V AC 1 phase |
| Other input voltage | 220 V 240 V |
| Efficiency at full load | 110…300 V 60 % load 176…300 V full load |
| Input connection | 1 hard wire 3-wire (1P + N + E) |
| Input frequency | 40…70 Hz auto sensing |
| Output voltage | 230 V AC 1 phase |
| Other output voltage | 220 V 240 V |
| Rated power in W | 10000 W |
| Rated power in VA | 10000 VA |
| Output connection | Hard wire 3-wire (1P + N + E) for 1 zone(s) |
| Bypass type | Internal bypass (automatic and manual) |
| Crest factor | 3 : 1 |
| Harmonic distortion | 1 % |
| Maximum configurable power in VA | 10000 VA |
| Maximum configurable power in W | 10000 W |
| UPS topology | On-Line |
| Waveform type | Sine wave |
| Efficiency | 94 % (full load) |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Run Time |
|
|---|---|
| Efficiency |
|
| Additional information | Configurable for 220 : 230 or 240 nominal output voltage |
|---|---|
| Battery type | Lead-acid external included |
| Control panel | Multifunction LCD status and control console |
| Emergency power off | Yes |
| Free slot | 1 |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| UPS connectivity | Serial port USB port Available expansion slot |
| Surge energy rating | 600 J |
| Number of rack unit | 5U |
| Color | Black (RAL 7010) |
| Height | 219.5 mm |
| Width | 438 mm |
| Depth | 615 mm |
| Product weight | 78 kg |
| Mounting location | Front |
| Mounting preference | Lower |
| Mounting mode | Rack-mounted |
| USB compatible | Yes |
| Mounting position | Horizontal |
| Mounting mode | Rack-mounted with included kit |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Redundant | No |
| Range of product | Easy UPS On-Line |
| Product or component type | Uninterruptible power supply (UPS) |
| Product certification | CE UKCA EAC TISI |
|---|---|
| Standard | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…60 °C |
| Storage altitude | 0…15000 m |
| IP protection | IP20 |
| Relative humidity | 0…95 % non-condensing |
| Storage relative humidity | 0…95 % non-condensing |
| Acoustic level | 58 dBA |
| Heat dissipation | 2128 Btu/h |
| Operating altitude | 0…3000 m |
| Battery type | Lead-acid battery |
|---|---|
| Battery voltage | 240 V |
| Extendable runtime | 1 |
| Included battery module | 0 |
| Empty battery slot | 0 |
| Typical recharge time | 5 h |
| Battery life | 3…5 year(s) |
| Battery charging power | 1170 W rated |
| Battery power in VAh | 1512 VAh runtime |
