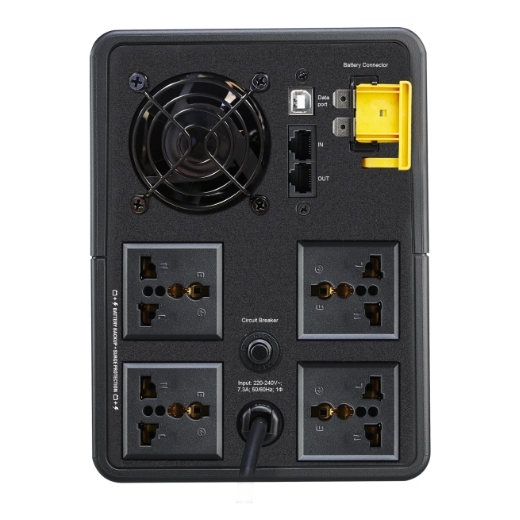

APC Back-UPS 1600VA, 230V, AVR, Universal Sockets BX1600MI-MS

New

APC Back-UPS 1600VA, 230V, AVR, Universal Sockets BX1600MI-MS

Name: APC Back-UPS 1600VA, 230V, AVR, Universal Sockets BX1600MI-MS
Brand: APC
SKU: 23863
Price: 243000.00 NGN
Availability: InStock

Add to wishlist

₦243,000.00

(0 reviews)

22 people are viewing this right now

Estimated Delivery:

15 - 22 Oct, 2026

Guaranteed safe & secure checkout

Product details

This APC Back-UPS offers power and surge protection for wireless networks, computers, gaming consoles and other electronics in your home or business. The 1600VA tower UPS has 4 total outlets, all of which provide battery backup and surge protection. The UPS has a surge energy rating of 273 Joules. It features Automatic Voltage Regulation to correct voltage dips and surges to proper levels. This UPS has a 2-year warranty and CE product certification.

Run time for load W Min-max: 90-900 W	1min 6s
Max. Capacity Used	100 %
Main input voltage	230 V AC 1 phase
Cos phi	0.56
Efficiency at full load	140…300 V
Input frequency	50/60 Hz +/- 5 Hz auto-sensing
Output voltage	230 V AC 1 phase
Rated power in W	900 W
Rated power in VA	1600 VA
Output connection	4 universal
Type of USB power supply	None
Maximum configurable power in VA	1600 VA
Maximum configurable power in W	900 W
Transfer time	6 ms typical : 10 ms maximum
UPS topology	Line interactive
Waveform type	Stepped approximation to a sinewave
Full load runtime	00:01:00 900 W
Half load runtime	00:06:30 450 W
Output frequency	50/60 Hz +/- 1 Hz sync to mains

Graphs
Run Time
Efficiency

Complementary
Battery type	Lead-acid internal included
Control panel	LED Status display with on line : on battery
UPS connectivity	USB port
Surge energy rating	273 J
Cable length	1.2 m
Number of cables	1
Color	Black
Height	190 mm
Width	140 mm
Depth	390 mm
Product weight	10.3 kg
Mounting preference	No preference
Mounting mode	Not rack-mountable
Two post mountable	0
USB compatible	Yes
Mounting mode	Tower
Number of power module filled slots	0
Number of power module free slots	0
Redundant	No
Range of product	Back-UPS
Product or component type	Uninterruptible power supply (UPS)

Environment
Product certification	CE
Standard	EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018
Ambient air temperature for operation	0…40 °C
Ambient air temperature for storage	-15…40 °C
Storage altitude	0…3000 m
IP protection	IP20
Relative humidity	0…95 % non-condensing
Storage relative humidity	0…95 % non-condensing
Acoustic level	40 dBA
Operating altitude	0…3000 m

Batteries & Runtime
Battery type	Lead-acid battery
Battery voltage	24 V
Battery graph comment	Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output.
Extendable runtime	0
Included battery module	0
Empty battery slot	0
Typical recharge time	8 h
Battery life	3…5 year(s)

Quick Comparison

APC Back-UPS 1600VA, 230V, AVR, Universal Sockets BX1600MI-MS remove APC EASY UPS BV 800VA remove APC SMART-UPS 900WATTS/1500VA remove Mercury 10KVA AVR - 1 Phase - Servo Stabilizer remove APC EASY UPS SMV 1400WATTS/2000VA remove Mercury Elite Pro 2000VA UPS remove

Name APC Back-UPS 1600VA, 230V, AVR, Universal Sockets BX1600MI-MS remove APC EASY UPS BV 800VA remove APC SMART-UPS 900WATTS/1500VA remove Mercury 10KVA AVR - 1 Phase - Servo Stabilizer remove APC EASY UPS SMV 1400WATTS/2000VA remove Mercury Elite Pro 2000VA UPS remove


SKU

Rating

Price

₦243,000.00

₦125,000.00

₦1,040,000.00

₦690,000.00

₦841,000.00

Save 6%

Stock

20 in stock

Availability 20 in stock 20 in stock 20 in stock

Add to cart

Description

Output power capacity 450 Watts / 800VA Output Connections (4) Universal receptacle (Battery Backup) Nominal Output Voltage 230V Nominal Input Voltage 230V Input Connections BS1363A British Cord Length 1.5meters

LCD
Input 230V/Output 230V
Interface Port USB Connect

Mercury 10KVA AVR - 1 Phase - Servo Stabilizer (Input voltage: 100V-255V AC

Power: 10KVA
Technology: Relay Control + Toroidal Transformer System
Efficiency: > 97%
Display: LED Digital Display
Frequency: 50Hz/60Hz
Delay Time: Short Delay (3-5 sec)
Over-voltage protection: AC246 ± 4V
High Temperature
Short Circuit
Output voltage: 220V ± 10%
Phase: Single
Compact Design – Sleek & handy. Get the Mercury 10kVA AVR for that all-important voltage protection to your equipment. With the Mercury 10kVA AVR, you can support heavy-duty equipment or a number of appliances at a stretch.Power fluctuations are common and for anyone using power generators (and who doesn’t?), the risk of voltage fluctuations is even higher. What you must know, also, is that voltage fluctuations can damage your important appliances, causing you financial loss.Automatic voltage regulators, AVR, provide the voltage stabilization that will protect your sensitive equipment. AVRs, commonly called stabilizers, are designed to stabilize the voltage. That not only helps your equipment to function optimally but protects them from damage. The AVR will take a wide input voltage range and output a regulated voltage range that is safe for your equipment.Having an AVR that delivers the expected result is a different matter, though. All AVRs are not made equal. And you need an AVR that does an effective job of providing the voltage stabilization that is imperative to keep your valued equipment safe.

That is where Mercury brand AVRs come in. Mercury AVRs are built to high standards and offer efficient voltage regulation function. With Mercury AVR, you get the result that you expect, with your equipment enjoying that all-important protection from voltage-induced damage. These Mercury AVRs also deliver the durability users expect, serving you for years on end. This is a quality stabilizer, suitable for home appliances and office equipment FEATURES:

Small Footprint
Wide Application
High cost effective & High power density
Automatic Control Circuit
High Quality Components
Ring Transformer Structure
Minimum Magnetic Leakage
Convenient Daily Maintenance
Stable Performance and Reliability
No Additional Distortion of Output Waveform
High Precision Auto Voltage Regulator Power Supply
Multi-layer Structure Carbon Brush with Long Service Time
High Adaptability to all kinds of non linear loads such as Inductive load and Capacitive load

Output
Max Configurable Power (Watts)1.4kWatts / 2.0kVA Output Frequency (not synced) 50/60 Hz +/-1 Hz Load Crest Factor3 : 1TopologyLine Interactive Waveform type Sinewave
Transfer Time: 2ms typical
Input
Input frequency 45 - 65 Hz (auto sensing)Input voltage range for main operations157 - 303VNumber of Power Cords1Other Input Voltages 220, 240
Batteries & Runtime
Battery type Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof Typical recharge time 4hour(s) Expected Battery Life (years)
3 - 5Battery Volt-Amp-Hour Capacity 302

Rating input voltage 2000 VA / 1200 W Rating input frequency 60/50Hz (auto sensing) Input phase Single phase Input socket With Fuse Rating output voltage (V) 220 Waveform Battery mode (simulated sine wave), AC Voltage Regulation ±10% (Battery mode) Rear output socket 4 x Universal - Battery backup Waveform Simulated Sine Wave (Battery mode) Line Mode Synchronize with the utility Rating frequency 60Hz or 50 Hz ± 1 Hz Battery Mode Yellow flashing Short circuit protection Line Mode Fuse & Firmware protection Short circuit protection Battery Mode Firmware Protection Overload protection Line Mode 110%±5%; Go to fault mode Line Mode after 5 minutes, 120%±5%; Go to fault mode immediately. Indicators AC mode Green Lighting Indicators Battery Mode Yellow Flashing Indicators Fault Red Lighting Alarm Battery Mode Sounding every 10 Seconds Alarm Low Battery Sounding every Second Alarm Overload Sounding every 0.5 second Alarm Fault Continuously sounding Full Protection Overload, discharge, and Overcharge protection Communication Interface Optional RS232/RJ11

Content

Run time for load W Min-max: 90-900 W	1min 6s
Max. Capacity Used	100 %
Main input voltage	230 V AC 1 phase
Cos phi	0.56
Efficiency at full load	140...300 V
Input frequency	50/60 Hz +/- 5 Hz auto-sensing
Output voltage	230 V AC 1 phase
Rated power in W	900 W
Rated power in VA	1600 VA
Output connection	4 universal
Type of USB power supply	None
Maximum configurable power in VA	1600 VA
Maximum configurable power in W	900 W
Transfer time	6 ms typical : 10 ms maximum
UPS topology	Line interactive
Waveform type	Stepped approximation to a sinewave
Full load runtime	00:01:00 900 W
Half load runtime	00:06:30 450 W
Output frequency	50/60 Hz +/- 1 Hz sync to mains

Graphs
Run Time
Efficiency

Complementary
Battery type	Lead-acid internal included
Control panel	LED Status display with on line : on battery
UPS connectivity	USB port
Surge energy rating	273 J
Cable length	1.2 m
Number of cables	1
Color	Black
Height	190 mm
Width	140 mm
Depth	390 mm
Product weight	10.3 kg
Mounting preference	No preference
Mounting mode	Not rack-mountable
Two post mountable	0
USB compatible	Yes
Mounting mode	Tower
Number of power module filled slots	0
Number of power module free slots	0
Redundant	No
Range of product	Back-UPS
Product or component type	Uninterruptible power supply (UPS)

Environment
Product certification	CE
Standard	EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018
Ambient air temperature for operation	0…40 °C
Ambient air temperature for storage	-15…40 °C
Storage altitude	0…3000 m
IP protection	IP20
Relative humidity	0…95 % non-condensing
Storage relative humidity	0…95 % non-condensing
Acoustic level	40 dBA
Operating altitude	0...3000 m

Batteries & Runtime
Battery type	Lead-acid battery
Battery voltage	24 V
Battery graph comment	Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output.
Extendable runtime	0
Included battery module	0
Empty battery slot	0
Typical recharge time	8 h
Battery life	3…5 year(s)

APC EASY UPS BV 800VA, AVR, Universal Outlet, 230VBest Value UPS with Battery Backup & Surge Protection for Electronics and Computers Includes: User Manual Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment. Allow flexibility for setup in tight locations and mounting on wall or other surfaces. Safeguard your Home UPS from overloads, excessive mains voltages, short circuits, installation mishaps and battery damage due to low voltage situations. Maximizes battery performance, life, and reliability through intelligent, precision charging. Provides temporary battery power when the utility power is out. Protect equipment with input transformer blocks without blocking access to other receptacles. Slim, modern design can be upright, flat, or wall-mounted to comfortably fit any electronics set-up and complement home décor. Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery. Back up and protect your hardware and data during power outages, surges and spikes. Outlets provide abundant runtime for network gateway equipment and other critical low-power devices, allowing for hours of internet access during a power outage. Provides notification of changing utility power and UPS power conditions Provide easy-to-read status of the unit and utility power conditions. Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. Output power capacity 450 Watts / 800VA Output Connections (4) Universal receptacle (Battery Backup) Nominal Output Voltage 230V Nominal Input Voltage 230V Input Connections BS1363A British Cord Length 1.5meters APC EASY UPS BV 800VA, AVR, Universal Outlet, 230V Easy UPS provides power protection for unstable power conditions, ensuring consistent and reliable connectivity at the most critical moments. Includes: User manual

APC Smart-UPS C 1500VA LCD 230V SMC1500I Uninterruptible Power Supplies (UPS)

- Battery-protected and surge-only outlets reserves power capacity and run time for connected equipment

- Network manageable Provides remote power management of the UPS over the network

- LED status indicators quickly understand unit and power status with visual indicators

- Hot-swappable batteries ensures clean, uninterrupted power to protected equipment while batteries are being replaced

- Adjustable voltage-transfer points maximizes useful battery life by widening the input voltage

" alt="Mercury 10KVA AVR 1 Phase Servo Stabilizer" width="500" height="500" data-src="https://www.digitaldirectng.com/wp-content/uploads/2023/04/Mercury-10KVA-AVR-1-Phase-Servo-Stabilizer.jpg" />

Mercury 10KVA AVR – 1 Phase – Servo Stabilizer

Mercury 10KVA AVR - 1 Phase - Servo Stabilizer (Input voltage: 100V-255V AC

Power: 10KVA
Technology: Relay Control + Toroidal Transformer System
Efficiency: > 97%
Display: LED Digital Display
Frequency: 50Hz/60Hz
Delay Time: Short Delay (3-5 sec)
Over-voltage protection: AC246 ± 4V
High Temperature
Short Circuit
Output voltage: 220V ± 10%
Phase: Single
Compact Design – Sleek & handy. Get the Mercury 10kVA AVR for that all-important voltage protection to your equipment. With the Mercury 10kVA AVR, you can support heavy-duty equipment or a number of appliances at a stretch.Power fluctuations are common and for anyone using power generators (and who doesn’t?), the risk of voltage fluctuations is even higher. What you must know, also, is that voltage fluctuations can damage your important appliances, causing you financial loss.Automatic voltage regulators, AVR, provide the voltage stabilization that will protect your sensitive equipment. AVRs, commonly called stabilizers, are designed to stabilize the voltage. That not only helps your equipment to function optimally but protects them from damage. The AVR will take a wide input voltage range and output a regulated voltage range that is safe for your equipment.Having an AVR that delivers the expected result is a different matter, though. All AVRs are not made equal. And you need an AVR that does an effective job of providing the voltage stabilization that is imperative to keep your valued equipment safe.

Small Footprint
Wide Application
High cost effective & High power density
Automatic Control Circuit
High Quality Components
Ring Transformer Structure
Minimum Magnetic Leakage
Convenient Daily Maintenance
Stable Performance and Reliability
No Additional Distortion of Output Waveform
High Precision Auto Voltage Regulator Power Supply
Multi-layer Structure Carbon Brush with Long Service Time
High Adaptability to all kinds of non linear loads such as Inductive load and Capacitive load

APC Easy UPS SMV 2000VA, Universal Outlet, 230VBest Value UPS with Battery Backup & Surge Protection for Electronics and ComputersIncludes: Documentation CD, USB cable, User Manual Output Max Configurable Power (Watts)1.4kWatts / 2.0kVAOutput Frequency (not synced)50/60 Hz +/-1 HzLoad Crest Factor3 : 1TopologyLine InteractiveWaveform typeSine wave transfer Time2ms typical Input Input frequency45 - 65 Hz (auto sensing)Input voltage range for main operations157 - 303VNumber of Power Cords1Other Input Voltages220, 240 Batteries & Runtime Battery type maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproofTypical recharge time4hour(s)Expected Battery Life (years)3 - 5Battery Volt-Amp-Hour Capacity302

MERCURY Line Interactive UPS (2000VA) - Elite 2000 ProWide input voltage rangeCompatible with generatorsOverload protectionShort circuit protectionBuilt-in AVRBattery deep discharge protection & overcharge protectionRating input voltage: 2000 VA / 1200 WRating input frequency: 60/50Hz (auto sensing)Input phase: Single phaseInput socket: With FuseCold Start (0 to 100% load): Press the ON/OFF SwitchInput Range (220V): 140-300Rating output (VA): 2000Rating output (W): 1200Power factor: 0.6Rating output voltage (V): 220Waveform: Battery mode (simulated sine wave), AC mode (sine wave)AC Voltage Regulation: ±10% (Battery mode)Rear output socket: 4 x Universal - Battery backupWaveform: Simulated Sine Wave (Battery mode)Line Mode: Synchronize with the utilityRating frequency: 60Hz or 50 Hz ± 1 HzBattery Mode: Yellow flashingShort circuit protection Line Mode: Fuse & Firmware protectionShort circuit protection Battery Mode: Firmware ProtectionOverload protection Line Mode: 110%±5%; Go to fault mode Line Mode after 5 minutes, 120%±5%; Go to fault mode immediately.Overload protection Battery Mode: 110%±5%; Shutdown after 5 seconds, 120%±5%, Shutdown immediatelyIndicators AC mode: Green LightingIndicators Battery Mode: Yellow FlashingIndicators Fault: Red LightingAlarm Battery Mode: Sounding every 10 SecondsAlarm Low Battery: Sounding every SecondAlarm Overload: Sounding every 0.5 secondAlarm Fault: Continuously soundingFull Protection: Overload, discharge, and Overcharge protectionTransfer Time: Typical 2-6ms, 10ms max.Transfer Time: Typical 2-6ms, 10ms max.Communication Interface: Optional RS232/RJ11Battery and runtime rating: 2 X 12V/9AHRecharge time – Typical: 6-8 hours recover to 90% capacityCharge current: About 1A at normal mode Mercury Elite 2000 Pro Line Interactive UPS provides a relatively robust capacity for power backup to meet office as well as domestic power backup demands. With the Mercury Elite 2000 you not only get power backup for your equipment but also enjoy solid protection for those appliances. The built-in AVR function of the Elite 2000 Pro means dangerous power fluctuations won't easily make mincemeat of your equipment.

Weight N/A 6 kg 10 kg 20 kg 20 kg 13 kg

Dimensions N/A N/A N/A N/A N/A N/A

Additional information

Weight	6 kg

Weight	10 kg

Weight	20 kg

Weight	20 kg

Weight	13 kg

Sold 0 0 0 0 0 0
