| Description | Main
|
|
|
|
|
|
| Main Input Voltage |
230 V AC 1 phase |
| Input voltage |
220 V
240 V |
| Maximum input current |
30 A |
| Switching current capacity |
40 A |
| Input voltage limits |
160...285 V full load
100...285 V half load |
| Number of input connectors |
1 hard wire 3-wire (1P + N + E) |
| Network frequency |
40...70 Hz auto-sensing |
| Output voltage |
230 V AC 1 phase |
| Output voltage |
220 V
240 V |
| Rated power in W |
5000 W |
| rated power in VA |
5000 VA |
| Output connection type |
2 IEC 60320 C13
1 IEC 60320 C19 |
| Output connector type |
Hard wire 3-wire (1P + N + E) for 1 zone(s) |
| Bypass type |
Internal bypass (automatic and manual) |
| Crest factor |
3 : 1 |
| Harmonic distortion |
Less than 2 % |
| Maximum configurable power in VA |
5000 VA |
| Maximum configurable power in W |
5000 W |
| UPS type |
Double conversion online |
| Wave type |
Sine wave |
| Efficiency |
93.5 % |
| Output frequency |
50/60 Hz +/- 4 Hz sync to mains |
Complementary
| Additional information |
Configurable for 220 : 230 or 240 nominal output voltage |
| Battery type |
Lead-acid internal included |
| Emergency power off |
Yes |
| Preinstalled device |
Network management card 3 with environmental monitoring |
| Alarm |
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| UPS connectivity |
Serial port
USB port
Pre-installed network management card 3 |
| Surge energy rate |
600 J |
| Number of rack unit |
4U |
| Colour |
Black (RAL 9005) |
| Height |
175 mm |
| Width |
440 mm |
| Depth |
620 mm |
| Net weight |
55.9 kg |
| Mounting preference |
Lower |
| Mounting mode |
Rack-mounted with kit |
| Two post mountable |
0 |
| USB compatible |
Yes |
| Mounting position |
Horizontal |
| Mounting mode |
Rack-mounted with included kit |
| Provided equipment |
1 x USB cable
1 x RJ45 cable
1 x rack mounting brackets
1 x stabilization/wall mounting feet
1 x installation manual
1 x C13-C14 power cord |
| Number of power module filled slots |
0 |
| Number of power module free slots |
0 |
| Redundant |
No |
| Range of product |
Smart-UPS On-Line |
| Product or component type |
Uninterruptible power supply (UPS) |
Environment
| Product certifications |
CE
UKCA
TISI |
| Standards |
EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018 |
| Ambient air temperature for operation |
0…40 °C |
| Ambient air temperature for storage |
-15…45 °C |
| Storage altitude |
0…15000 m |
| IP degree of protection |
IP20 |
| Relative humidity |
0…95 % non-condensing |
| Storage Relative Humidity |
0…95 % non-condensing |
| Acoustic level |
55 dBA |
| Heat dissipation |
1108.95 Btu/h |
| Operating altitude |
0...3000 m |
Batteries & Runtime
| Run Time |
View Runtime Graph |
| Efficiency |
View Efficiency Graph |
| Battery type |
Lead-acid battery |
| Battery voltage |
+/- 96 V |
| Extended runtime |
1 |
| Number of battery filled slots |
2 |
| Number of battery free slots |
0 |
| Battery recharge time |
4 h |
| Number of battery replacement quantity |
1 |
| Battery life |
3…5 year(s) |
| Replacement battery |
APCRBC170 |
| Battery charger power |
239 W rated |
|
- Apparent power: 400 VA
- UPS architecture: line-interactive
- Number of phases at the input: 1 (230V)
- Number of batteries: 1
- Voltage: 12 V
- Battery capacity: 4.5 Ah
- Charging time: 4 hours
| Output power capacity
450 Watts / 800VA
Output Connections
(4) Universal receptacle (Battery Backup)
Nominal Output Voltage
230V
Nominal Input Voltage
230V
Input Connections
BS1363A British
Cord Length
1.5meters |
- Home Appliances
- Office Equipment also
- General Use
| Main
|
|
|
|
|
|
| Main Input Voltage |
230 V AC 1 phase |
| Input voltage |
220 V
240 V |
| Input Connection Type |
IEC 60320 C20 |
| Input voltage limits |
110...285 V half load
160...280 V full load |
| Network frequency |
40...70 Hz auto sensing |
| Output voltage |
230 V AC 1 phase |
| Output voltage |
220 V
240 V |
| Rated power in W |
2400 W |
| rated power in VA |
3000 VA |
| Output connection type |
6 IEC 60320 C13
1 IEC 60320 C19 |
| Bypass type |
Internal bypass (automatic and manual) |
| Crest factor |
3 : 1 |
| Harmonic distortion |
3 % |
| Maximum configurable power in VA |
3000 VA |
| Maximum configurable power in W |
2400 W |
| UPS type |
On-Line |
| Wave type |
Sine wave |
| Efficiency |
88 % (full load) |
| Output frequency |
50/60 Hz +/- 3 Hz sync to mains |
Complementary
| Additional information |
Configurable for 220 : 230 or 240 nominal output voltage |
| Battery type |
Lead-acid internal included |
| Control panel |
Multifunction LCD status and control console |
| Free slots |
1 |
| Alarm |
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| UPS connectivity |
Serial port
USB port
Available expansion slot |
| Surge energy rate |
600 J |
| Cable length |
1.5 m |
| Number of cables |
1 |
| Colour |
Black (RAL 7010) |
| Height |
336 mm |
| Width |
190 mm |
| Depth |
425 mm |
| Net weight |
26.8 kg |
| Mounting location |
Front |
| Mounting preference |
No preference |
| Mounting mode |
Not rack-mountable |
| USB compatible |
Yes |
| Mounting position |
Vertical |
| Mounting mode |
Tower |
| Number of power module filled slots |
0 |
| Number of power module free slots |
0 |
| Redundant |
No |
| Range of product |
Easy UPS On-Line |
| Product or component type |
Uninterruptible power supply (UPS) |
Environment
| Product certifications |
CE
UKCA
EAC
TISI |
| Standards |
EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018 |
| Ambient air temperature for operation |
0…40 °C |
| Ambient air temperature for storage |
-20…50 °C |
| Storage altitude |
0…15000 m |
| IP degree of protection |
IP20 |
| Relative humidity |
0…95 % non-condensing |
| Storage Relative Humidity |
0…95 % non-condensing |
| Acoustic level |
50 dBA |
| Heat dissipation |
910 Btu/h |
| Operating altitude |
0...3000 m |
Batteries & Runtime
| Run Time |
View Runtime Graph |
| Efficiency |
View Efficiency Graph |
| Battery type |
Lead-acid battery |
| Battery voltage |
72 V |
| Extended runtime |
0 |
| Number of battery filled slots |
0 |
| Number of battery free slots |
0 |
| Battery recharge time |
4 h |
| Battery life |
3…5 year(s) |
| Replacement battery |
APCRBCV205 |
| Battery charger power |
60 W rated |
|
-
Output
Max Configurable Power (Watts)1.4kWatts / 2.0kVA Output Frequency (not synced) 50/60 Hz +/-1 Hz Load Crest Factor3 : 1TopologyLine Interactive Waveform type Sinewave
- Transfer Time: 2ms typical
Input
Input frequency 45 - 65 Hz (auto sensing)Input voltage range for main operations157 - 303VNumber of Power Cords1Other Input Voltages 220, 240
Batteries & Runtime
Battery type Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof Typical recharge time 4hour(s) Expected Battery Life (years)
- 3 - 5Battery Volt-Amp-Hour Capacity 302
|
| Content |

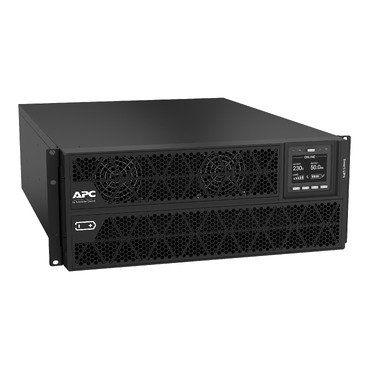

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 5kVA on-line rack/tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (1P+N+E) input, 2x IEC 320 C13 and 1x IEC 320 C19 outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTGRK1 rail kit sold separately.
| Liebert itON 400VA is a reliable line-interactive UPS designed for the protection of desktop computers and standalone IT equipment. Liebert itON comes complete with an automatic voltage regulator (AVR) allowing flexibility and reliability for PCs and other sensitive electronic equipment. With its compact design and easy to use controls, Liebert itON also provides sufficient back up time, allowing work in progress to be saved safely before proceeding with the system shutdown. Liebert itON also comes complete with automatic restart and cold start functions for increased continuity and availability.
-
Apparent power: 400 VA
-
UPS architecture: line-interactive
-
Number of phases at the input: 1 (230V)
-
Number of batteries: 1
-
Voltage: 12 V
-
Battery capacity: 4.5 Ah
-
Hold time (100% load): 4 min
-
Charging time: 4 hours
-
Enclosure type: Tower
-
Security / filters: Excessive discharge, Overload
-
Special functions: - Cold start - Automatic voltage regulation system (AVR) - Sine when working on the battery LEDs indicating: - Charging the battery - Overloading the UPS - Low battery - Overload - Necessary battery replacement - Battery failure
-
Power supply ports: Type F Schuko
-
Power ports: 2 x type C / F (Schuko)
-
Connectors: None
-
Environmental requirements: - Operating temperature: from 0 to 40 degrees C- Storage temperature: from -20 to 50 degrees C- Operating humidity / storage: 0 - 90% (non-condensing)
-
Accessories in the set: Operating instructions
-
Color: Black, Gray
-
Dimensions: - Width: 100 mm - Height: 142 mm - Depth: 287 mm
-
Weight: 3.55 kg
-
Other parameters: - Real power: 240W- Input connector: cable with Schuko plug (10A) - Hold time at 50% load: 8 minutes - Input voltage range in basic mode: 162-290V- Variable input voltage range: 220-240V
| APC EASY UPS BV 800VA, AVR, Universal Outlet, 230VBest Value UPS with Battery Backup & Surge Protection for Electronics and Computers Includes: User Manual Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment. Allow flexibility for setup in tight locations and mounting on wall or other surfaces. Safeguard your Home UPS from overloads, excessive mains voltages, short circuits, installation mishaps and battery damage due to low voltage situations. Maximizes battery performance, life, and reliability through intelligent, precision charging. Provides temporary battery power when the utility power is out. Protect equipment with input transformer blocks without blocking access to other receptacles. Slim, modern design can be upright, flat, or wall-mounted to comfortably fit any electronics set-up and complement home décor. Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery. Back up and protect your hardware and data during power outages, surges and spikes. Outlets provide abundant runtime for network gateway equipment and other critical low-power devices, allowing for hours of internet access during a power outage. Provides notification of changing utility power and UPS power conditions Provide easy-to-read status of the unit and utility power conditions. Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Output power capacity
450 Watts / 800VA
Output Connections
(4) Universal receptacle (Battery Backup)
Nominal Output Voltage
230V
Nominal Input Voltage
230V
Input Connections
BS1363A British
Cord Length
1.5meters
APC EASY UPS BV 800VA, AVR, Universal Outlet, 230V
Easy UPS provides power protection for unstable power conditions, ensuring consistent and reliable connectivity at the most critical moments.
Includes: User manual | Low, High, Fluctuating NEPA Voltage? So, get One 20KVA Servo Voltage-Stabilizer (80-260V) for your entire Flat, Home, Office, etc.
This is also an Extreme Wide Input Voltage (80-260V)
On the other hand, it would also Stablize and Protect all electrical appliances in your premises: This includes your Air Conditioners, Fridges, Freezers, TV, Home Theatre, DVD, Satellite Decoder, Electronics, Lights, Fans, Washing Machine, Microwave, Pumping Machine, Photocopier, Printer, Desktops, Notebooks, etc.
In addition, the Servo Voltage Stabilizer series is based on digital technology; therefore, provides voltage stabilization and protection to appliances and equipment; otherwise, designed as a central stabilizer to handle all house loads.
Features
- Input Voltage Range (80-260V)
- Hence, Steady output voltage
- Digital Control
- Servo Technology + Toroidal Transformer System
- LED display and
- Low and Over voltage protection
|
This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA double-conversion on-line tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SRV comes with IEC 320 C20 input, 6x IEC 320 C13 and 1x IEC 320 C19 outlets. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9901l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The SRV UPS is compatible with replacement battery cartridge APCRBCV205. The Easy UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.
| APC Easy UPS SMV 2000VA, Universal Outlet, 230VBest Value UPS with Battery Backup & Surge Protection for Electronics and ComputersIncludes: Documentation CD, USB cable, User Manual
Output
Max Configurable Power (Watts)1.4kWatts / 2.0kVAOutput Frequency (not synced)50/60 Hz +/-1 HzLoad Crest Factor3 : 1TopologyLine InteractiveWaveform typeSine wave transfer Time2ms typical
Input
Input frequency45 - 65 Hz (auto sensing)Input voltage range for main operations157 - 303VNumber of Power Cords1Other Input Voltages220, 240
Batteries & Runtime
Battery type
maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproofTypical recharge time4hour(s)Expected Battery Life (years)3 - 5Battery Volt-Amp-Hour Capacity302 |
